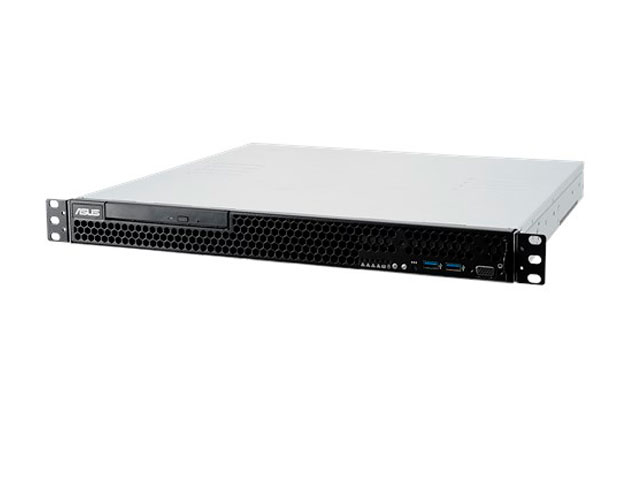

Технические характеристики сервера ASUS 1U RS100-E10-PI2
| Процессор / Системная шина |
1 x Socket LGA1151 Intel® Xeon® processor E-2100 family Intel® Xeon® processor E-2200 family The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor |
| Generation | E10 |
| Чипсeт | Intel® C242 Chipset |
| Оперативная память |
Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size : 32GB, 16GB, 8GB, 4GB UDIMM |
| Слоты расширения |
Total PCI/PCI-X/PCI-E/PIKE Slots: 1 1 x PCI-E x16 (x16 Gen3 Link) |
| Хранилище данных |
SATA Controller : Intel® C242 Chipset 2 x Internal 3.5” HDD 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode * Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1 ) |
| Корпус для жесткого диска |
with ODD, up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" disk bay support without ODD, up to 2 x3.5" disk bay or option 1x3.5"+4x2.5" disk bay support |
| Auxiliary Storage FDD/CD/DVD |
1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW |
| Сеть | 4 x Intel® I210AT + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 32MB VRAM |
| Разъемы на передней панели |
2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports |
1 x External Serial Port 4 x RJ-45 ports 2 x USB 3.1 ports 2 x USB 3.0 ports 1 x VGA port 1 x RJ-45 ports (One for ASMB9-iKVM)(Optional) |
| Switch/LED |
Rear Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED |
| Поддержка ОС |
Windows® Server 2016 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS |
| Администрирован-е |
ASUS Control Center Optional ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class B) |
| Размеры |
380mm x 430mm x 44mm 14.96" x 16.93" x 1.73" |
| Форм-фактор | 1U |
| Вес |
Net Weight: 7.5 Kg Gross Weight: 11.72 Kg |
| Электропитание |
Single 250W 80 PLUS Bronze Power Supply Rating: 100-240Vac,4A ,50-60Hz, Class I Single 350W 80 PLUS Gold Power Supply Rating: 100-240Vac,6A-3A ,50-60Hz, Class I |
| Экология |
Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
